My Screen Recorder 5.0


Recording Custom Region of your PC Screen

You can select a particular window of PC or a region of your screen with the Custom Region settings.  This helps the viewer to focus on what you are trying to present.  Selecting custom region option eliminates recording the unnecessary portion of the entire desktop.  When you select a region, all the icons, windows, and files within that Custom Region are recorded.

To Make a Screen Recording of a Custom Region of the PC Screen

Click File >> Record >> Recording Options >> Custom Region.

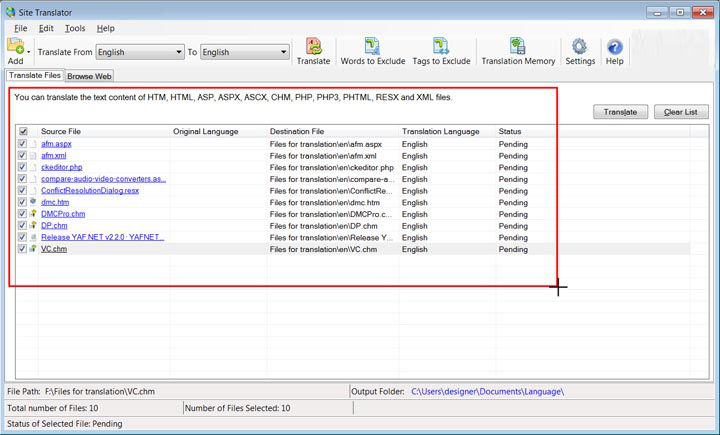

Fig 1.  The Site Translator window is selected using the Crosshair.

On selecting the Custom Region option, the mouse pointer changes to a crosshair.  Drag the crosshair across the desired area on your desktop to select the region of the screen to record.  Record any application by clicking on its window.  The dimension chosen are locked to that window region so you can record just the window portion.

As you are selecting the region to record, you can see a set of dimensions listing the width and height of the capture area.  In the Region Selection box you can customize the width and height of the capture dimensions.

Region Selection

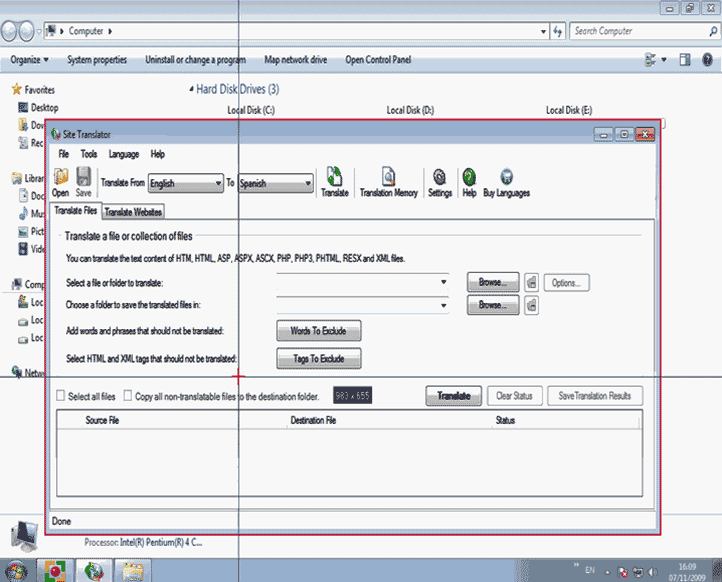

Fig 2.  Region Selection

If you want the width and the height fields to be proportionally adjusted to each other, select the option Lock Aspect Ratio when adjusting width or height.

On selecting the option Lock selected area to window, the application window resizes to stay within the recording boundaries.

If you are not sure about the dimensions, choose a fixed size from the Preset Dimensions dropdown.  The recently recorded dimensions are also listed above the separator line in the dropdown.  You can use this list to quickly access the last recorded dimensions.

Press Clear Area to return to the Crosshair and select a different region.  After selecting a region, click Start Recording.

You can work on your computer while all the desktop activities are recorded in the background.
