WebCam Monitor 6.21


Setting up a Camera Schedule

The Scheduler in WebCam Monitor allows you to set the start and stop time for a camera to automatically begin and end Monitoring actions, Video Recording and Broadcasting.  You can configure an individual schedule for each camera.

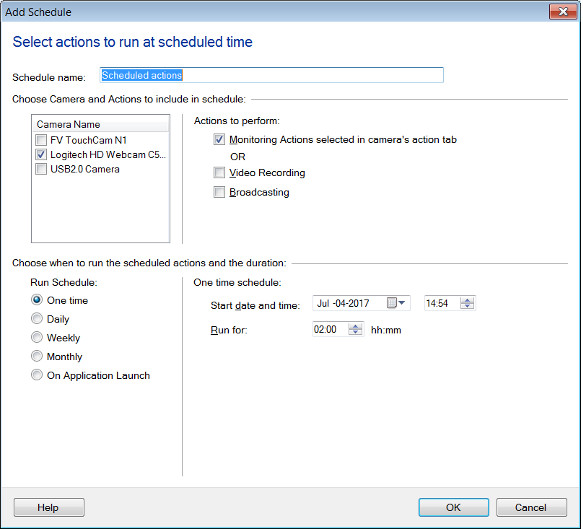

To schedule a device, click Tools >> Scheduler >> Add.

Schedule Name: You can specify a name for the schedule.  This will avoid any confusion if you are scheduling multiple cameras separately.

Choose Cameras and Actions to include in schedule:

Camera List: A list of cameras will be visible, if multiple cameras are added to WebCam Monitor.  You can check the cameras you wish to schedule.

Schedule Actions

Monitoring Actions or Video Recording: Use the Monitoring Actions  to have alerts such as recording or take photo on motion detection.  The other option is to record video.

Broadcasting: By selecting this option, you will be able to schedule the broadcasting of live video.

Choose when to run the scheduled actions and the duration:

Perform actions: You can choose the type of scheduling and configure the Schedule settings
