Security Monitor Pro 6.09

Upload Media Files

Security Monitor Pro allows you to upload video recordings and photos automatically, delete local files after upload and overwrite photos with the same filename.

To configure FTP Upload behavior, click Add Camera >> Actions >> Upload Media files.

Click on Add button to create a new FTP profile.  To Edit an FTP account settings, select the FTP Profile from the drop down.

Creating a new FTP Profile

FTP Profiles define how to connect to a server and where to copy files to.  To know how to configure FTP Settings, click here.

Upload Media to folder

This is the remote folder where Security Monitor Pro will upload your video recording and photo files.  Security Monitor Pro uses the default folder that the FTP server specifies.  You can choose a different FTP folder by clicking on Browse which opens a FTP Folder Browser dialog.

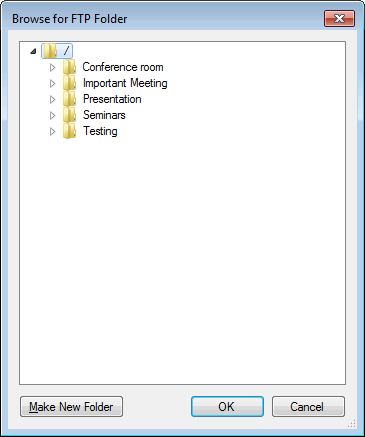

The FTP Folder Browser dialog shows a directory list in a tree structure.  The default FTP folder that is specified by the server is specified by the root i.e., '/'.  You can create a new remote folder using Make New Folder button.  Once you select the FTP folder that you want, click OK.

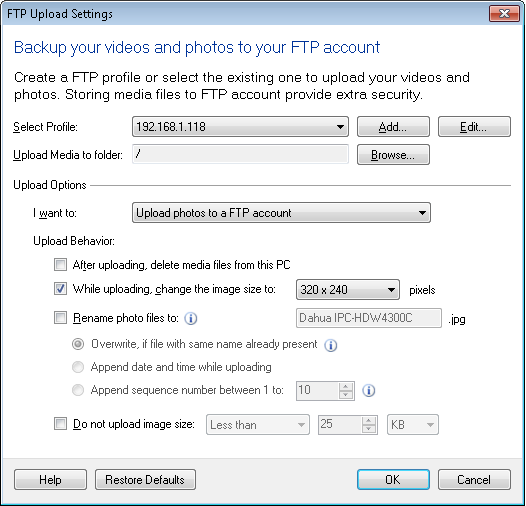

Upload options

I want to: You upload either Photos, Video or both when alerts are triggered.  Depending on the option selected from the drop down, Security Monitor Pro starts uploading your video and photo files whenever an alert is triggered.  By default, Backup Videos and Photos to an FTP account is selected.  You can upload only videos or photos also.

Upload behavior

After uploading, delete files from this PC: After uploading to the server, Security Monitor Pro deletes the files from your local computer, thus freeing the disk space.

While uploading, change the image size to: If this option is checked then while uploading, the image file will be resized it to the selected dimension from the following drop down:

When this option is unchecked, image files will be uploaded with dimension same as the camera resolution.

Rename photo files to: You can choose the filename to save your photo(s) on the FTP server by checking Rename photo files to option.  If this option is unchecked then photos will be uploaded by their original name.

Rules to rename a file:

  • Overwrite files: To view a single and the most recent alert image on a webpage, use overwrite rule.  If a file with same name is already present in upload media folder then the old file will be replaced with the new one.  This will help you to maintain and view only the updated photos on your website.
  • Append date and time while uploading: When this option is selected then after the filename, application will append date and time when it took the photo.  This will help you to maintain an image history.
  • Append sequence number between 1 to N: Use this option to have a collection of N most recent images.  A number is appended after the photo filename and increased by one, after each successful upload.  Once the counter reaches the defined value N, it is reset to 1 and starts from the beginning.

Do not upload image size: Enabling this option will prevent upload of certain files having size greater than or less than specific size.
